Carl's Golf Room Floor Tile System (5 Pack)

Description

Transform your simulator space with Carl’s Golf Room Floor Tile System—designed for comfort, safety, and a seamless, professional finish. These interlocking foam tiles form the cushioned subfloor of your golf simulator and offer durable, cushioned support underfoot while staying firmly in place during every swing.

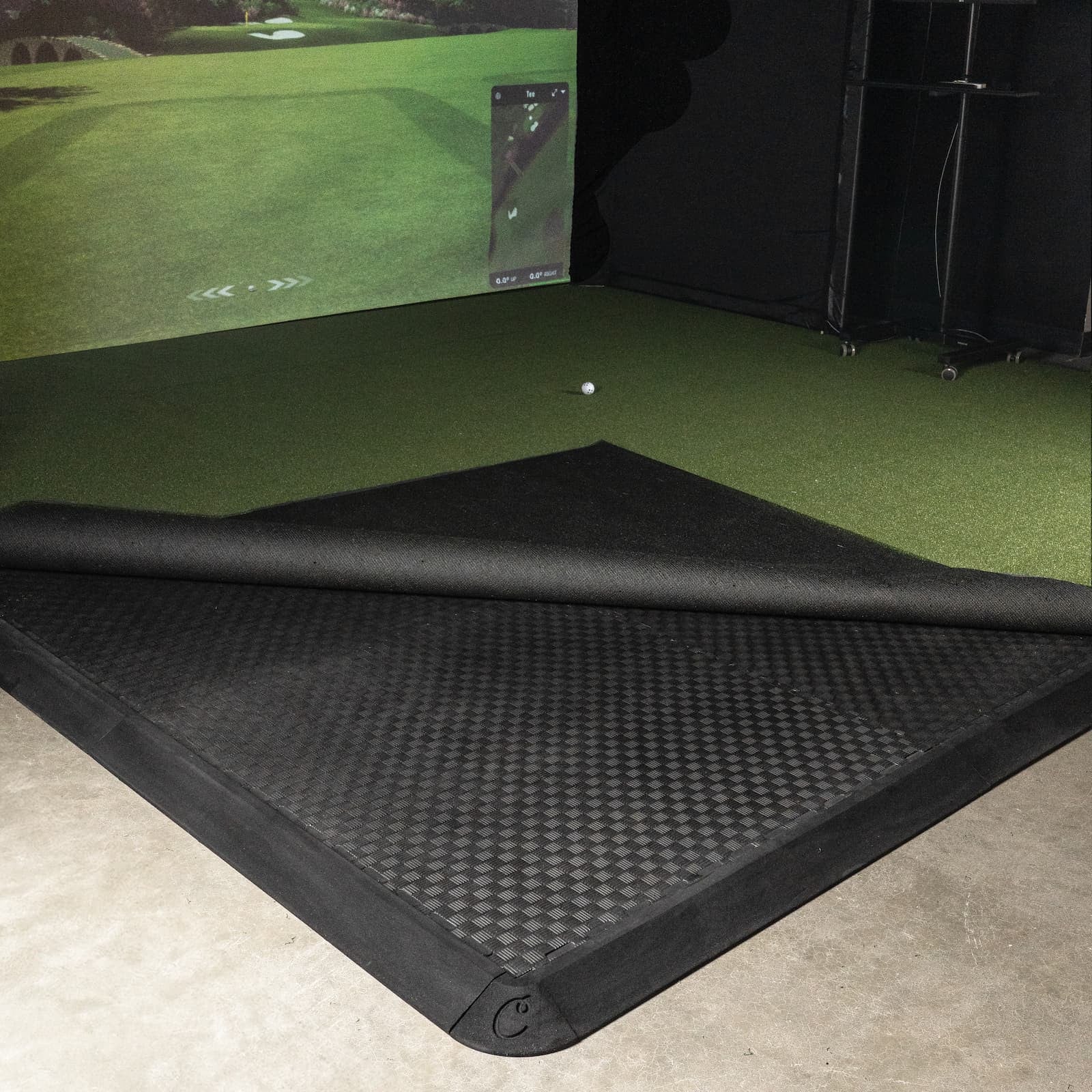

Optional edge and corner pieces provide a smooth, trip-free transition for a clean, polished look. Easily integrate your hitting mat and lay turf on top to create the ultimate mat-to-turf aesthetic that enhances realism and immersion. Perfect for golfers looking to elevate both the feel and functionality of their indoor setup.



NOTE: For orders beyond the quantities offered, please email us at sales@indoorgolfsource.com with your tile quantity and details.

Key Features

Shock-Absorbing Surface

• Reduces strain on joints and provides a comfortable, stable footing for extended play



Modular & Expandable Design

• Easily connect and configure tiles to fit any simulator space, from compact home setups to large commercial venues



Durable & Long-Lasting

• Constructed from high-quality materials to withstand heavy use and maintain its appearance over time



Professional Aesthetic

• Enhances the look of your golf simulator while providing a clean, high-end finish

What’s Included

• Pack of (5) Golf Room Floor Tiles

Specifications

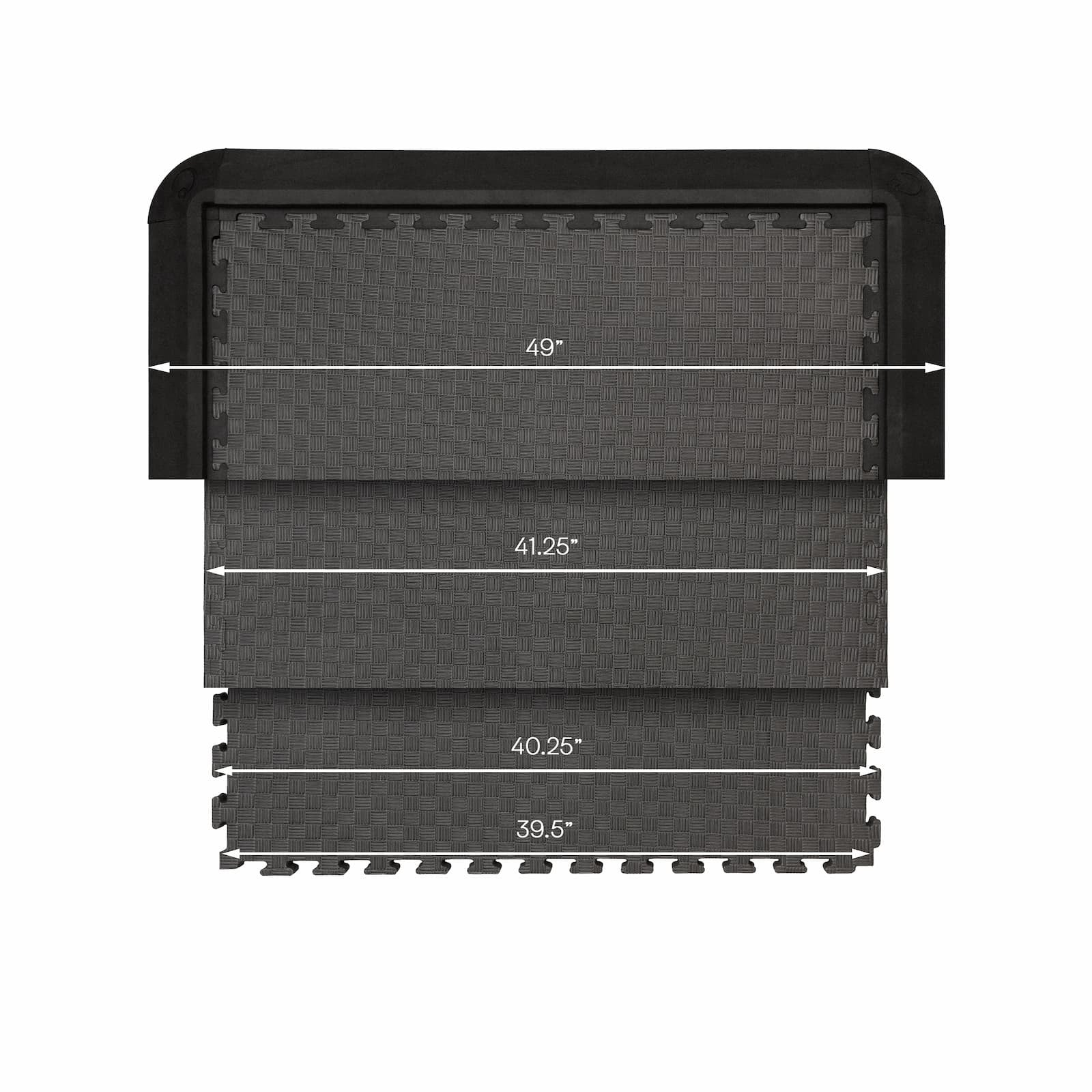

Floor Tile Size

• With tall tapered edges: 49" x 49" x 1.25” (variance of up to 1/8")
• With simple edge: 41.25" x 41.25" x 1.25” (variance of up to 1/8")
• Without edges: 40.25" x 40.25" x 1.25” (variance of up to 1/8")
• Inner flat area without tabs: 39.5" x 39.5" x 1.25” (variance of up to 1/8"



Edge Piece Size

• 41.25" x 5.25" x 1.25"(inner lip) (variance of up to 1/8")



Quantity

• Floor Tiles come in packs of 5
  Edge pieces come in pack of 6
  Corner pieces come in pack of 4

How to Order

Step 1: Measure Your Floor Space



• Width (left to tight, in inches)
• Depth (front to back, in inches)



Step 2: Figure Out How Many Floor Tiles You Need



Check the floor tile dimensions below for measurements with and without trim pieces. Note how the interlocking puzzle pieces will change the overall width of your floor tile, and plan your layout accordingly.

• Comes in packs of 5
• One pack covers 59 sq ft.



Check out this floor tile calculator to help you calculate the number of boxes (5 tiles in each box) that you need to order.

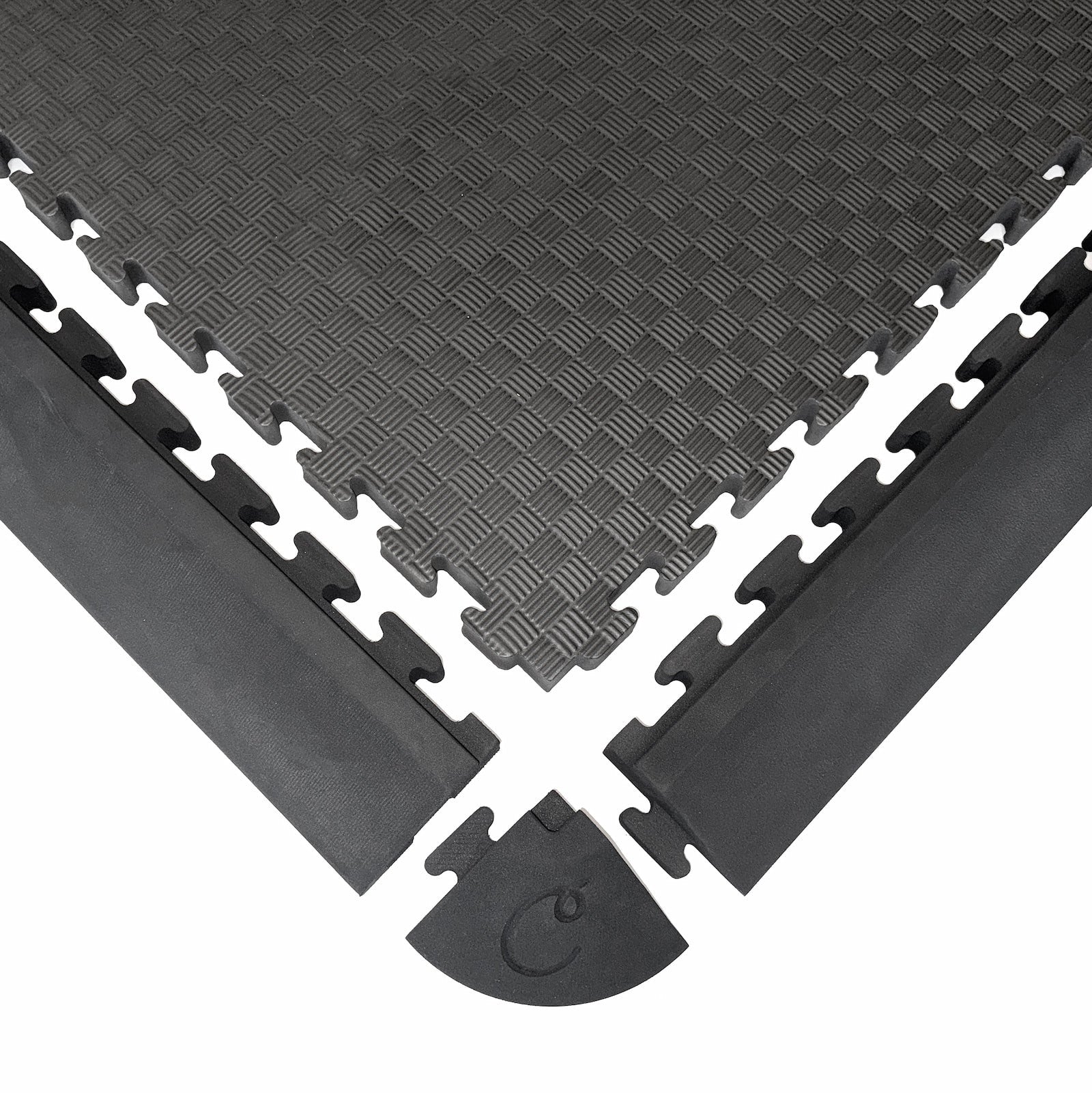

Step 3) Tally Up How Many Edge Pieces You Need



Option 1: Standard Edge Pieces

Every floor tile includes a standard straight edge piece - you can use those if you want to simply lay turf on top of the floor tiles.

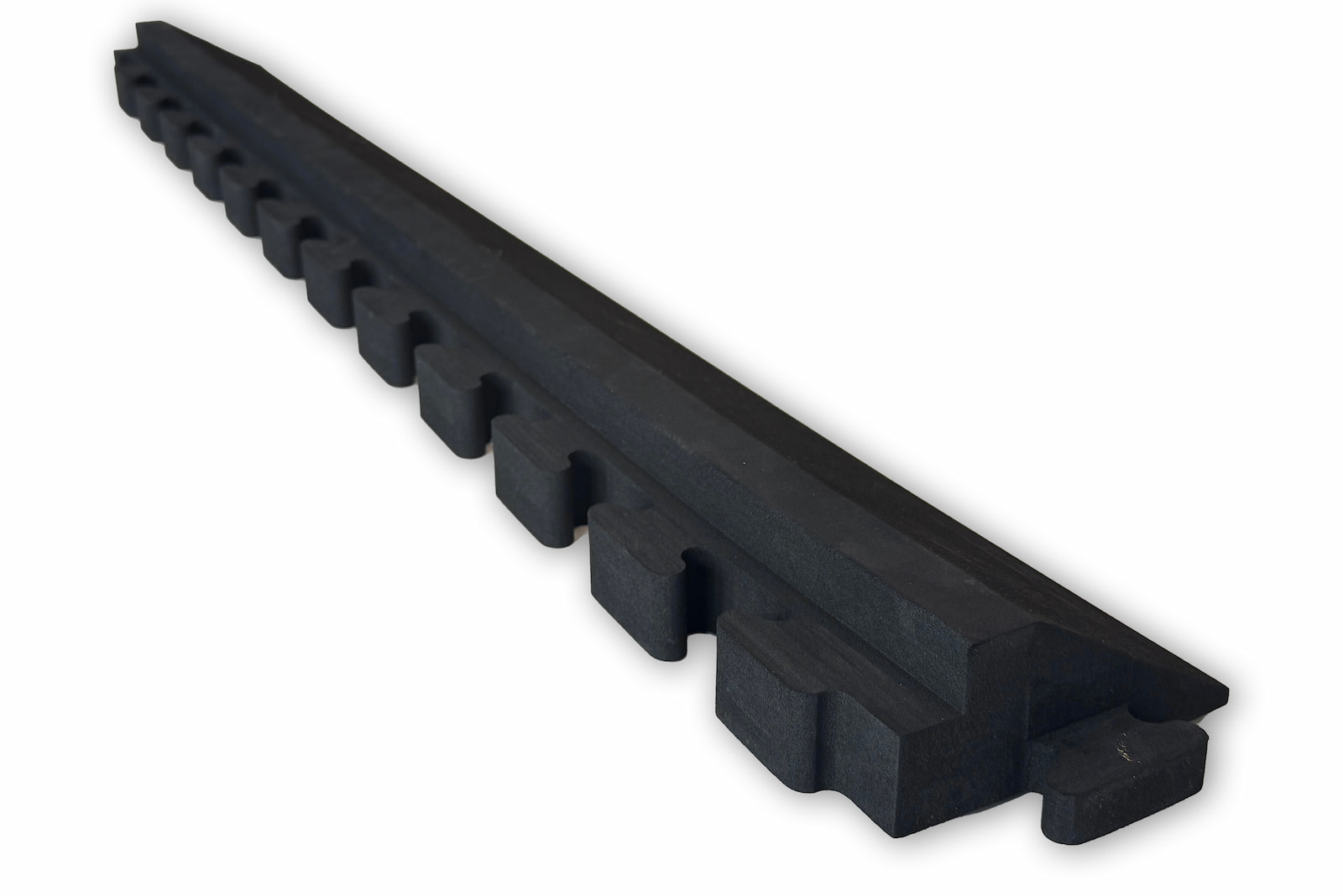

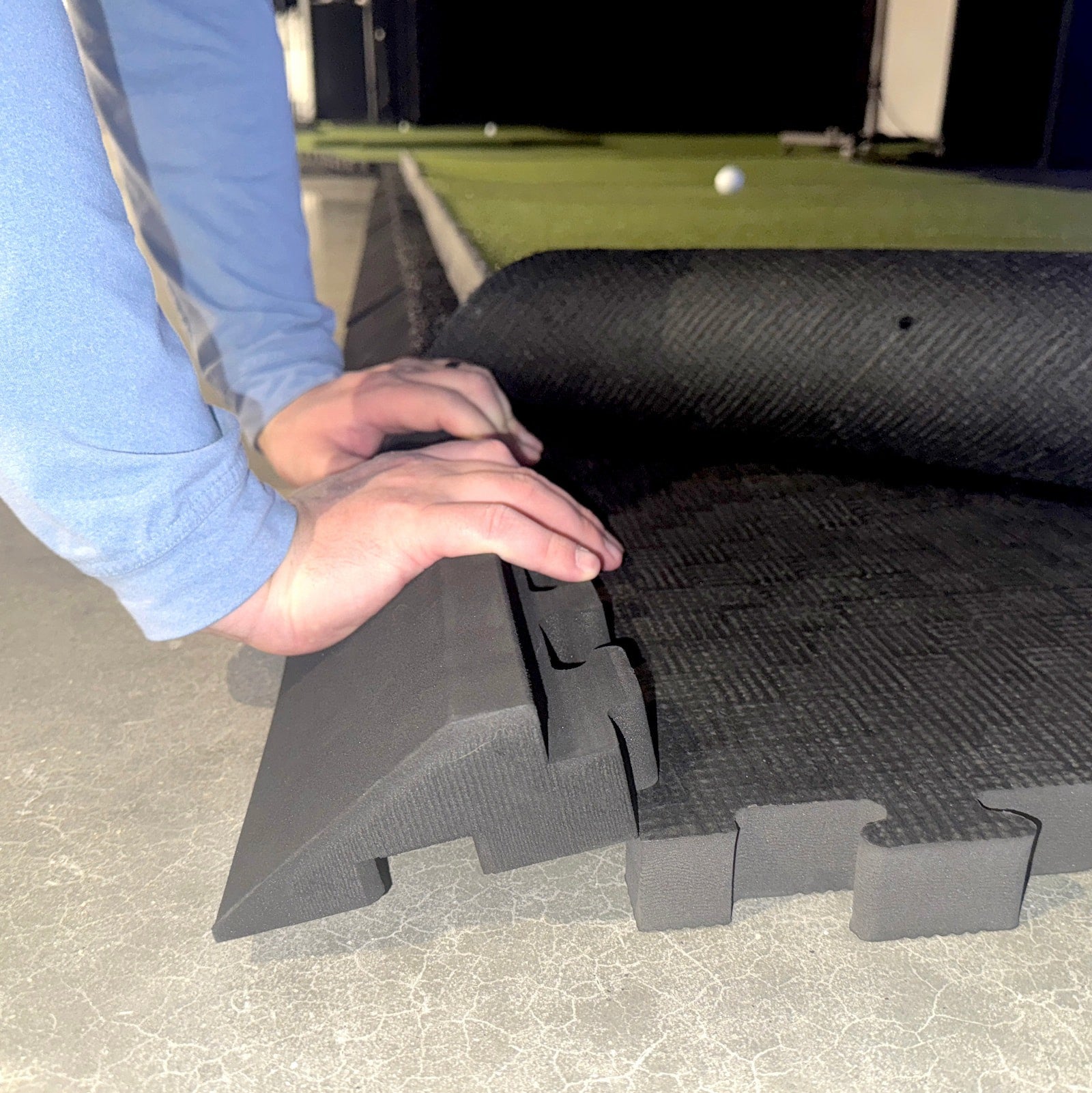

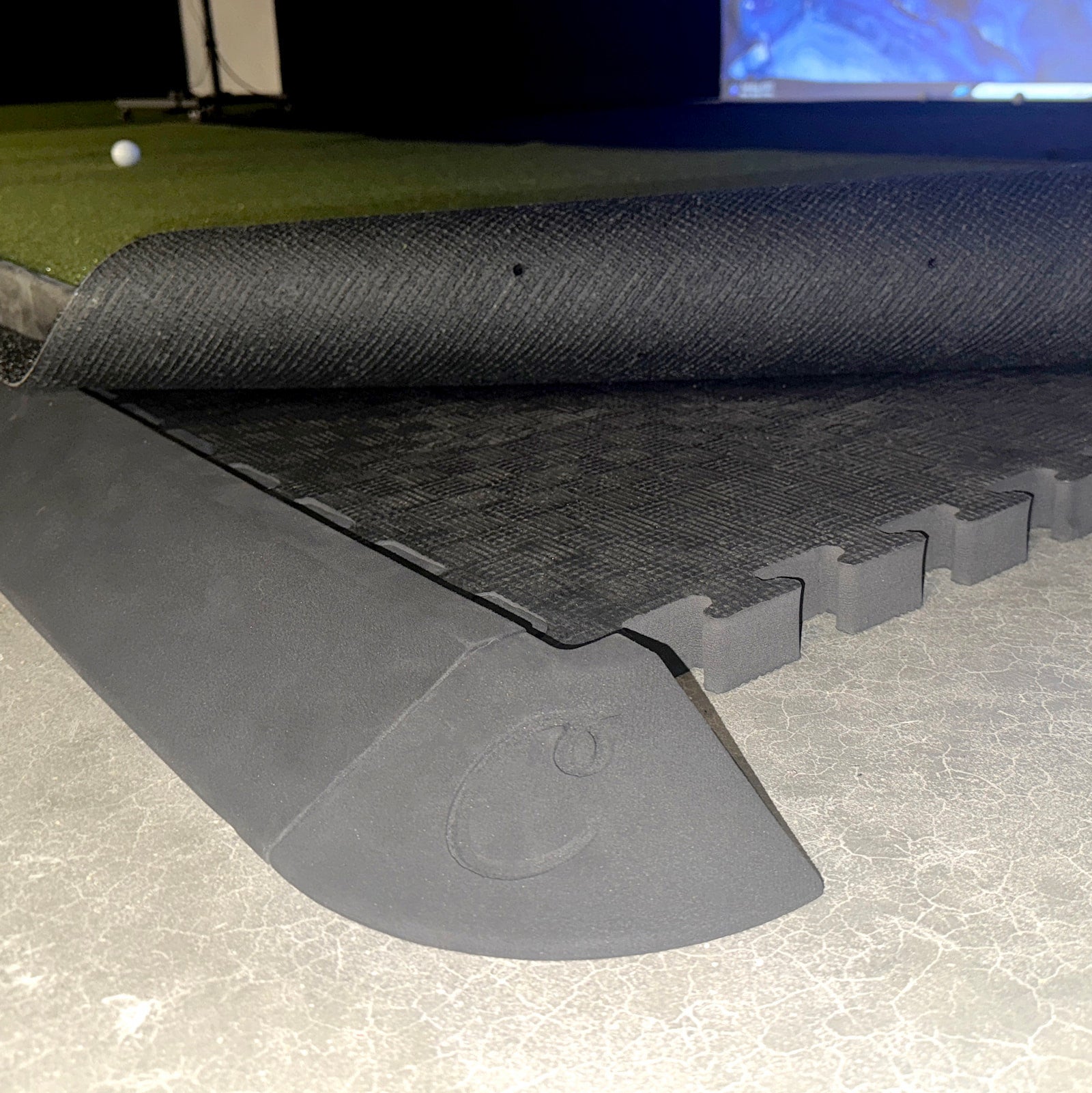

Option 2: Tapered Tall Edges

Or opt for the taller, tapered edge which holds the turf in neatly, giving your space a nicer finished edge. Sold separately in packs of 6.

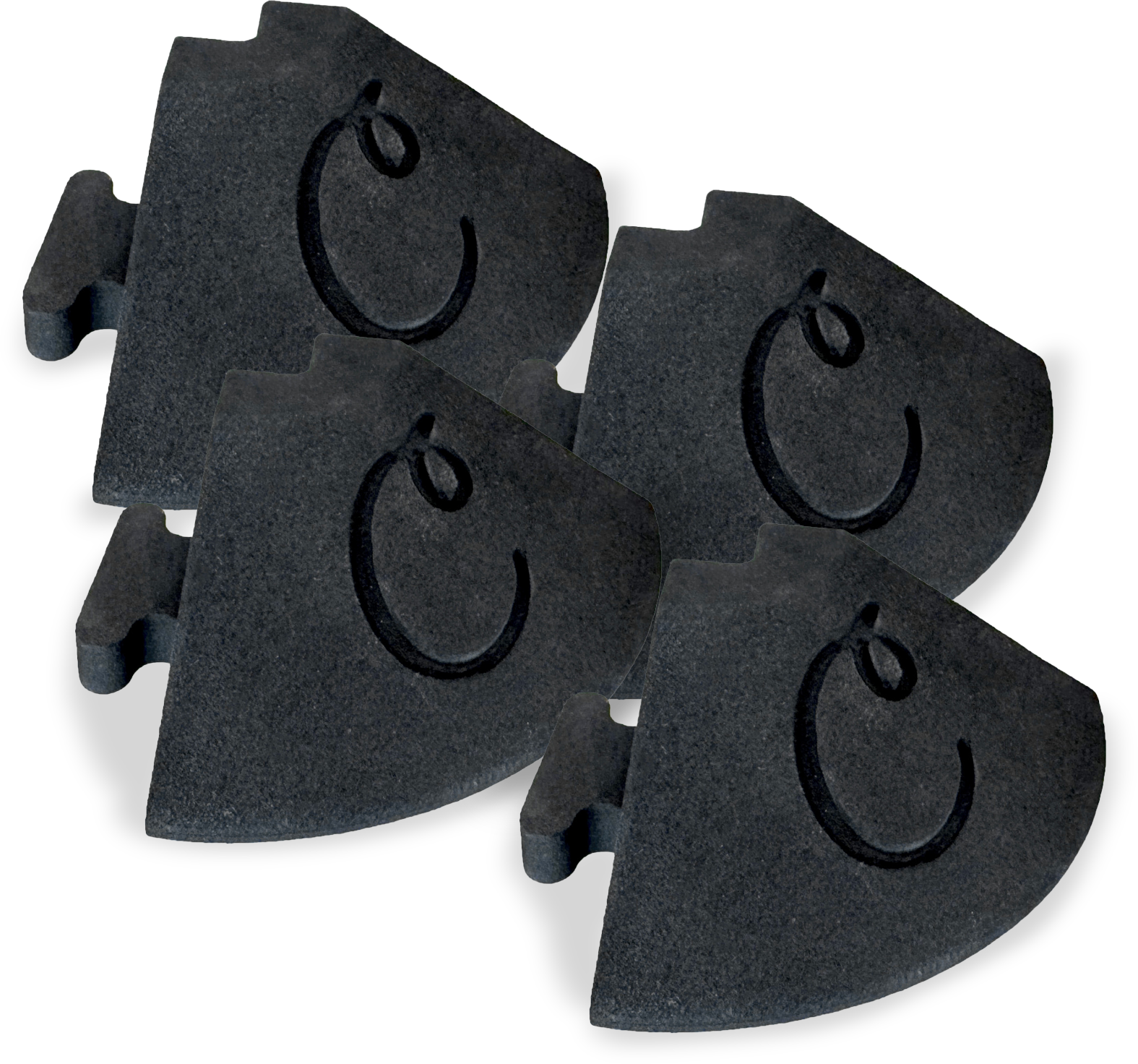

Step 4: Don't Forget the Corner

• Corner pieces come in packs of 4. Most setups only need one pack.

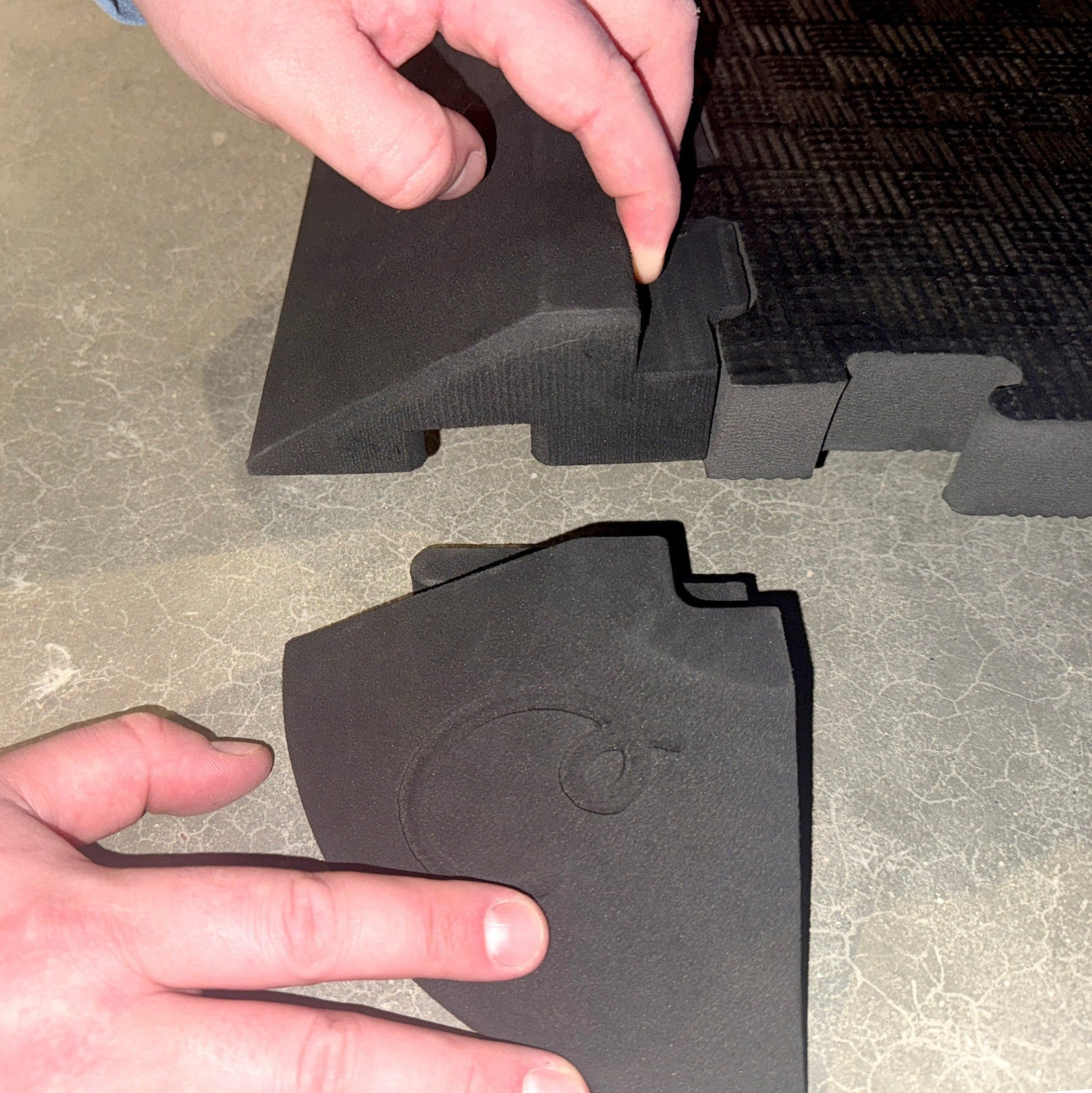

• If your layout has inside corners (like a T- or L-shaped area), you can order extra, and cut the corner pieces to fit.







Example Order

Floor area covered: 206.25" wide x 247.5" deep

• 206.25" width / 41.25" = 5 tiles wide
• 247.5" depth / 41.25" = 6 tiles deep



If you want edges around the entire perimeter of the floor, you need: 5 edges across the front + 5 across the back = 10 width edges. They come in packs of 6, so order 2 packs. 6 edges along the left + 6 along the right = 12 depth edges. Order 2 packs. 4 corners = 1 pack (4 per pack)



Your Total Order:

• 6 packs of floor tiles (30 total)
• 2 packs of width edge pieces (12 total, use 10)
• 2 packs of depth edge pieces (12 total, use all 12)
• 1 pack of corner pieces (4 total)







Resources

Link: Floor Tile Edging Instructions
