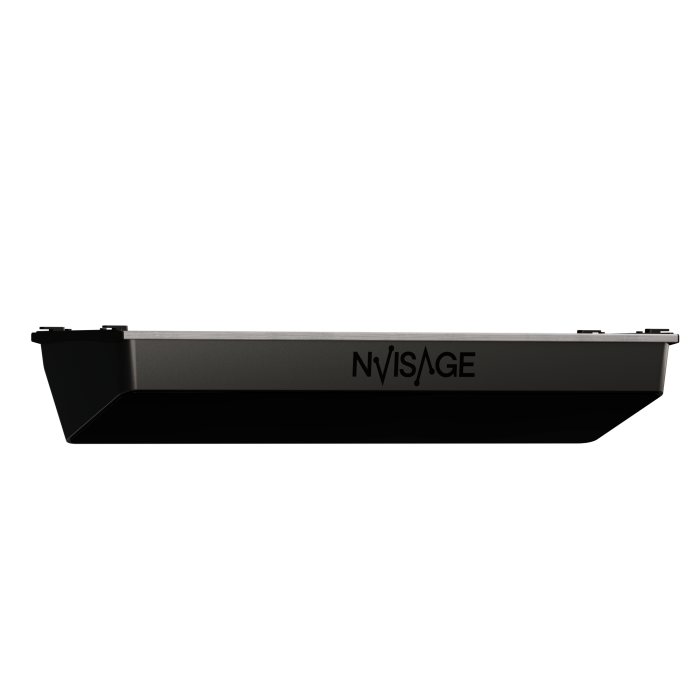

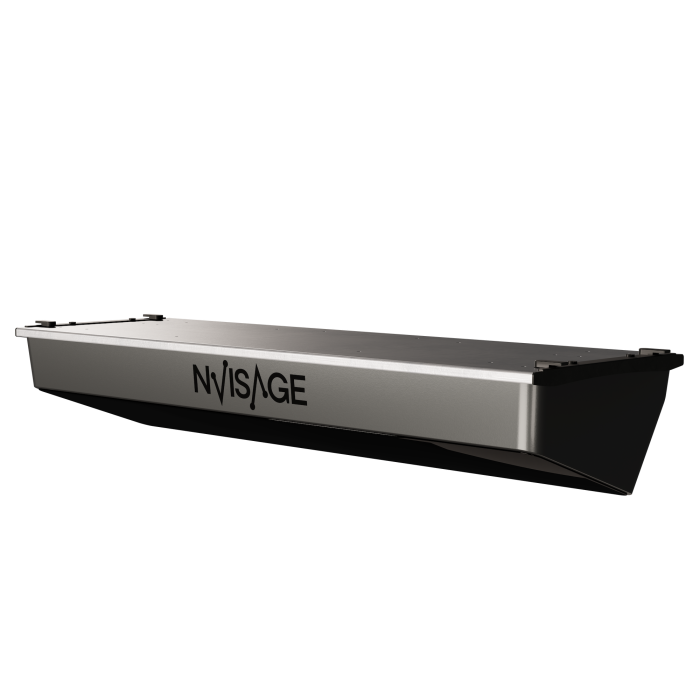

NVISAGE N1 Launch Monitor

Description

The NVISAGE N1 Launch Monitor is the definitive, high-performance overhead solution engineered for the discerning golfer seeking to dramatically improve their game in a luxurious home, office, or commercial setting. Unlike lower-tier photometric systems, the N1 employs advanced dual 2,000 FPS high-speed cameras and the proprietary PhysX 6D Physics Engine to capture every nuance of ball and club data with unparalleled precision, delivering a truly life-like simulation experience. Its refined overhead design not only maximizes your hitting space, making it perfect for pairing with a premium indoor golf mat and large impact screen, but also positions the technology safely out of the way for an uninterrupted, authentic swing.



For residential enthusiasts building their ultimate golf simulator environment or commercial facility owners demanding robust data accuracy, the N1 integrates seamlessly with industry-leading software like GSPro and E6 Connect. This monitor stands out as the optimal choice for a customer interested in a high-caliber golf simulator setup, offering professional-grade performance and a sophisticated aesthetic without the prohibitive cost of comparable tour-level units.

Key Features

Precision Dual-Camera System

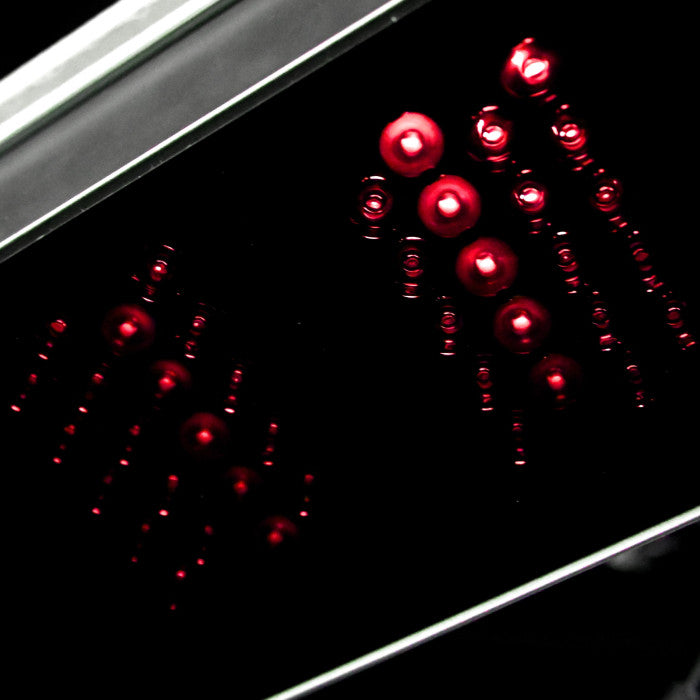

The NVISAGE N1 utilizes a pair of ultra-high-speed 2,000 FPS cameras that meticulously track ball rotation and trajectory, ensuring the most accurate and reliable data for a complete understanding of your swing dynamics.



Expansive Overhead Hitting Zone

Designed for ceiling-mount installation, the generous 24" x 20" ready zone allows for a comfortable, full-swing experience on any golf hitting mat, keeping the device secure and out of your swing path for maximum safety and convenience.

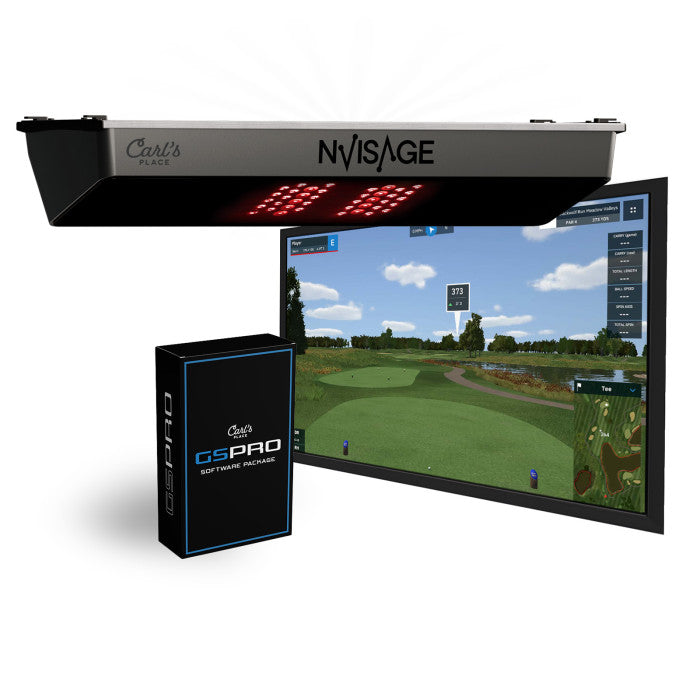

Seamless Simulation Integration

Enjoy instant compatibility with top-tier third-party simulation platforms, including GSPro and E6 Connect, providing access to a vast library of virtual courses and advanced training tools to elevate your performance.



Comprehensive Data Metrics

This launch monitor captures essential data parameters, including Club Speed, Ball Speed, Launch Angle, Spin Axis, Back Spin, Side Spin, and Total Spin, giving you actionable insights to consistently refine and improve your golf game.

What’s Included

• Launch Monitor Sensor
• Calibration Board
• Power Adapter and Cable
• Ethernet Cable
• Ethernet to USB 3.0 Adapter (Select models/bundles)
• Mounting Screws (Typically 6)
• Leveling Tool
• 12 Premium Marked Golf Balls (Required for optimal spin data)



Specifications

Specification	Detail
Dimensions (L x W x H)	$21.8'' \times 6.9'' \times 4.9''$
Weight	$19.2$ lbs
Mounting Location	Overhead
Optimal Mounting Position	$9-10$ ft. overhead, $2$ ft. in front of the tee
Hitting Zone	$24'' \times 20''$
Cameras	(2) $2,000$ FPS High-Speed Cameras
Compatibility	GSPro, E6 Connect
PC Requirement (Minimum)	Intel i5 8400, 8 GB RAM, GeForce GTX 1060 (or equivalent)
Operating System	Windows 10 (64-bit) Version 1803 or higher
Connection Type	Ethernet Port Required (No Wi-Fi support)

Assembly

• Separate Mounting Plate: Use a Philips screwdriver to remove the retention screws and detach the mounting plate from the N1 unit.
• Secure Mounting Plate: Using the included screws, attach the mounting plate securely to a solid ceiling substrate, ensuring it is positioned correctly relative to the hitting surface ($9-10$ ft. overhead, $2$ ft. in front of tee). Use appropriate anchors (not included) for drywall or non-structural surfaces.
• Attach N1 Unit: Insert the N1 unit onto the mounting bracket, rotate, and slide it into place.
• Secure N1 Unit: Re-insert and tighten the retention screws removed in the first step to secure the monitor to the mount.
• Connect Cables: Connect the Ethernet cable and the power cable to the unit to complete the physical mounting process.
